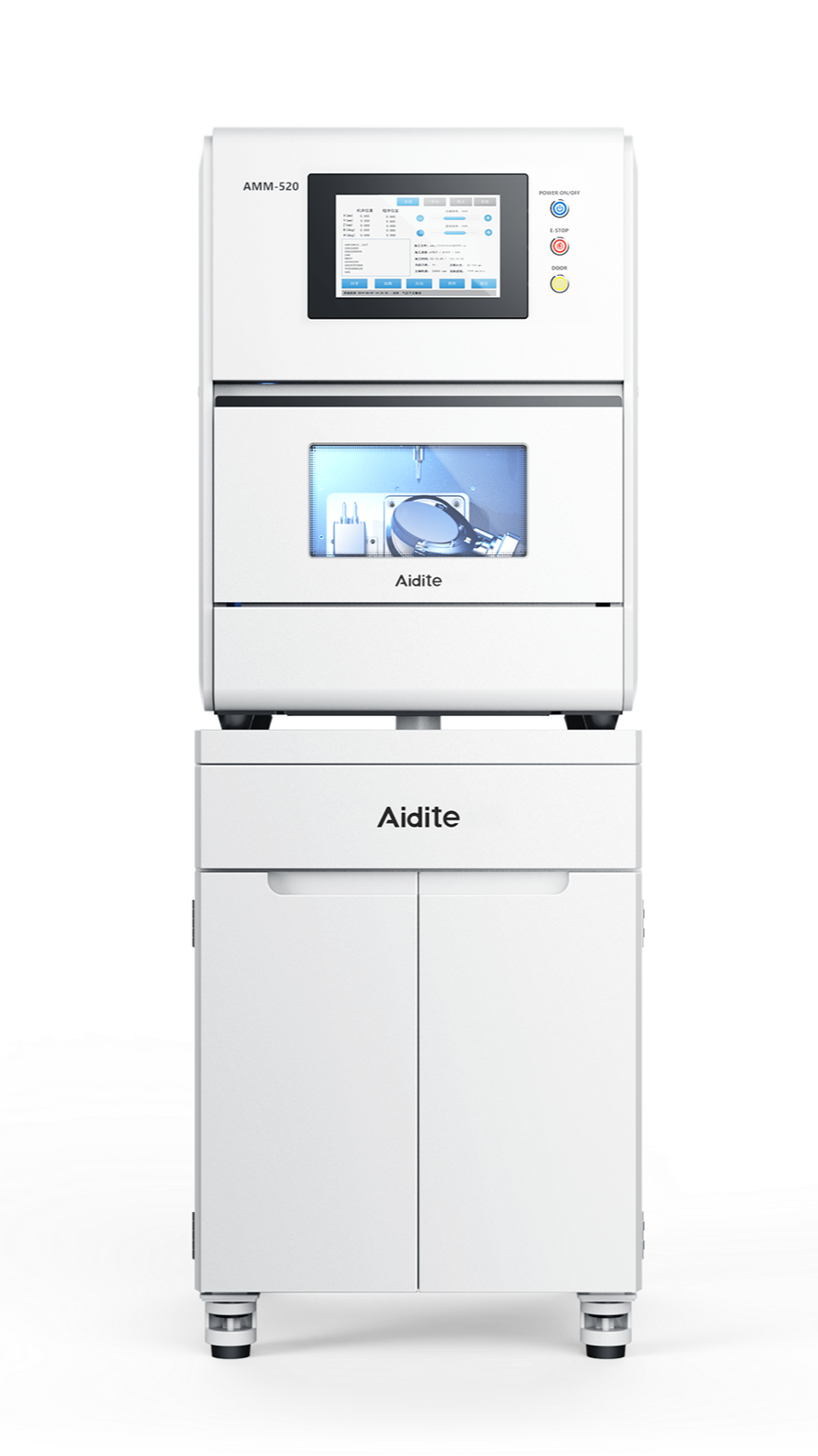

Wet & Dry Milling machine
AMM-520 is a wet and dry integrated multi-functional milling machine, with a stable structure and a variety of fixture combinations, meeting different production needs.
Machine Maintenance Tips
Safety Door
one-piece silicone
Customized Abutment Reverse Grip Milling
Harmonic drive
Various fixtures (optional)
Machine size |
590×730×820（mm）； |
Weight |
180Kg |
Tool changer |
10 |
Number of axes |
5 Simultaneous Processing |
Milling mode |
Wet and dry |
Material thickness |
10-35mm (round disc) |
Accessories |
Work table, water cooler, water tank |
Repeat positioning accuracy |
± 5um |
Linear drive system |
Linear guide and lead screw |
Rotary drive system |
Harmonic reducer |
Control system |
Embedded CNC system and AC bus servo motor |
Millable material |
Zirconia, PMMA, HPP, PEEK,Titanium disc, wet milling restoration material, denture, premill |
Processing time |
Single crown ≤15min, Premill ≤20min Wet milling restoration material≤20min, full denture≤3h |
Power: AC 1500W
Cooling: water cooling
Speed: 60000rpm
Chuck size: Φ4 mm
Power supply:
single-phase AC 220V 50/60Hz Voltage
Power: 2.2KW 10A
Air pressure: 6Bar
Denture, bitesplingt, snap on smile, surgical guide, partial framework, crown and bridge, veneer, inlay, post and core, screw-retained bridge (a separate nesting moudle needs to be added for implant case), custom abutment
